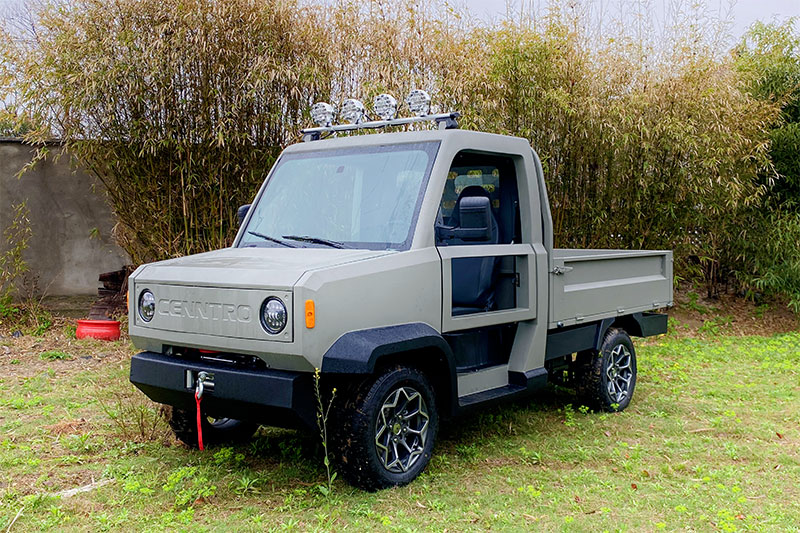

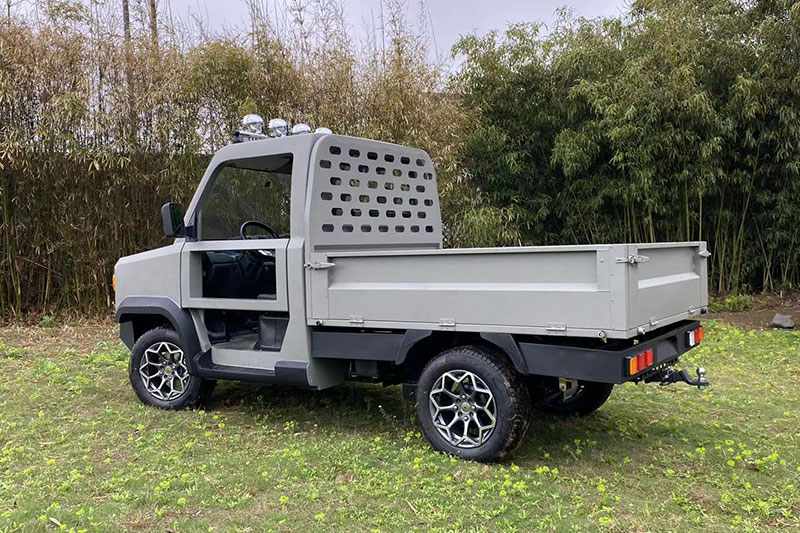

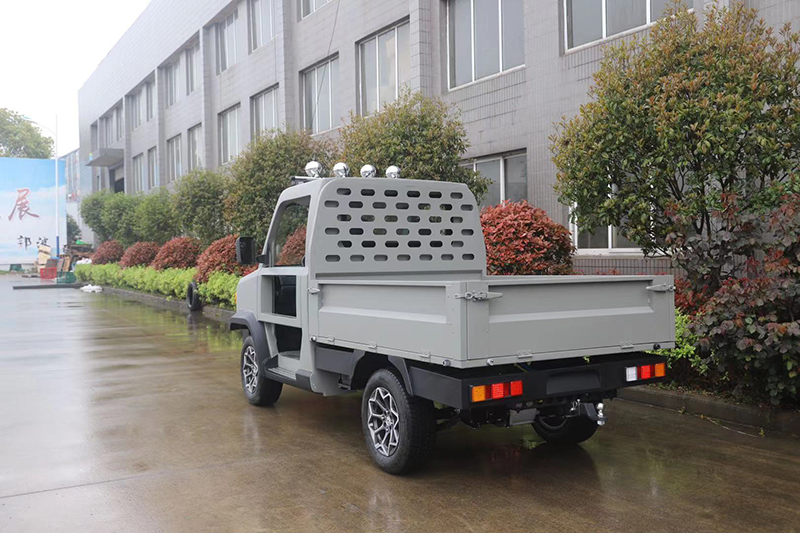

Off-road Electric Utility Vehicle (Payload Capacity: 1000kg)
Basic Specifications
Overall dimensions: 3990×1580×2050mm
Cargo volume: 3.1m³
Battery: lithium ion battery 10kwh
Range: 80km
Ideal for Transporting Cargo on Agricultural Roads and Farm Tracks
TERRAMAK series is an electric utility-terrain vehicle (UTV) typically designed for driving over uneven terrain. With its large carrying capacity and strong drive force, this off-road electric vehicle is suitable on agricultural roads, farm tracks, dirt roads, etc.
Agricultural production, Refuse collection, Urban infrastructure
-
-
-

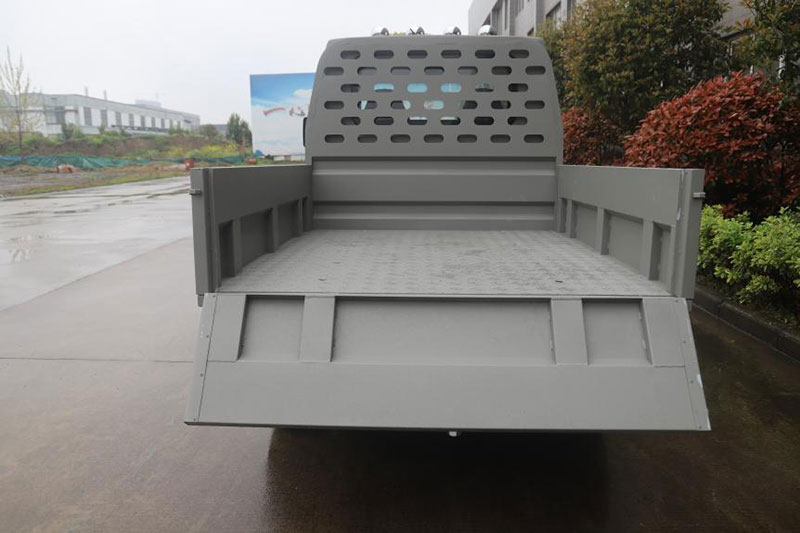

More Storage Space, Larger Payload Capacity
TERRAMAK off-road electric utility vehicle is offered with a storage space of 3.1m³ which is much larger than that of conventional UTVs. Besides, the vehicle body and chassis both are featured by robust structure.
-
-
-
-
Maintenance Free, Low Cost
TERRAMAK electric utility-terrain vehicle has less moving parts in contrast to combustion-powered vehicle, providing easy maintenance.
-
-
-
-
Zero Emissions, No Pollution
Thanks to its all-electric design, the utility-terrain vehicle eliminates the need for fuel, opening the possibilities for cleaner air and creating a healthy environment.
-
-
-
-
Exceptional Off-road Performance

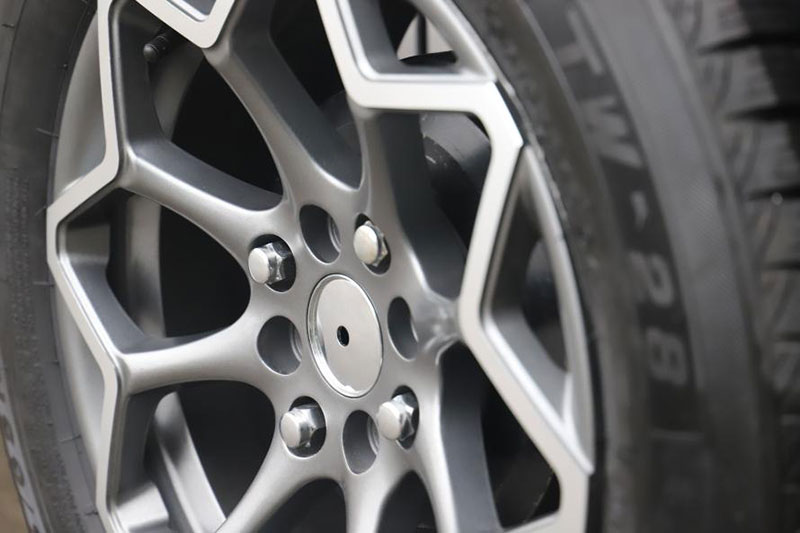

The exclusive design of off-road tire can support TERRAMAK electric utility vehicle to driving over any tough driving conditions and terrain.
-
Detailed Specifications
| Length(mm) | 3990 | |
| Width(mm) | 1580 | |
| Height(mm) | 2050 | |
| Cargo bed size(mm) | 1970×1575 | |
| Wheelbase(mm) | 2500 | |
| Track width(mm) | 1310 | |
| Payload capacity(kg) | 1000 | |
| Curb weight(kg) | 1100 | |
| Max.speed(km/h) | 50 | |
| Range(km) | 80 | |
| Voltage(V) | 76.8 | |
| Battery capacity(kw/h) | 10 | |
| Motor power | 7.5kw | |
| Gradeability(%) | 25 | |

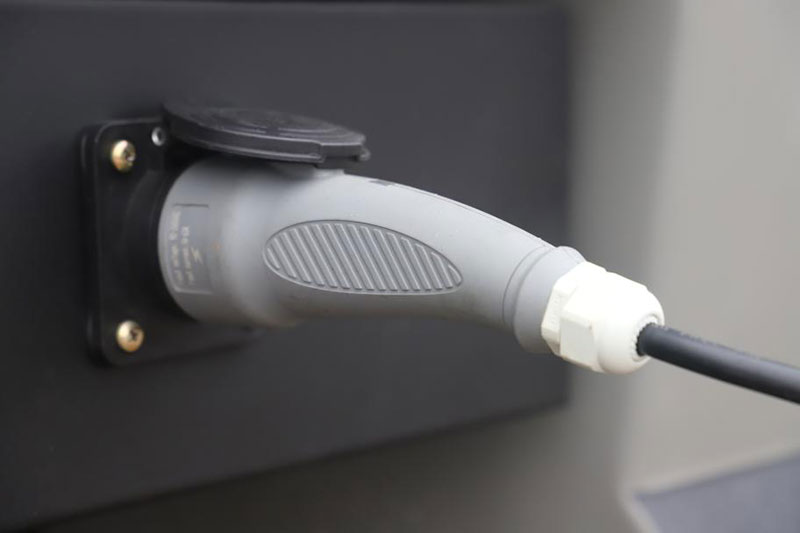

| Battery charging | Slow charging | ● |
